【About this item】
Display Features
10.4-inch industrial touch display with WXGA resolution (1024×768) and 250 cd/m² brightness, providing clear and reliable visuals for professional use in various industries.
Panel and Durability
10-point capacitive touch screen for precise interaction, ideal for industrial and commercial applications. With an IP54 rating, it is protected against dust and water, ensuring durability in challenging environments.
Refresh Rate and Contrast
Features a 60Hz refresh rate and a contrast ratio of 250:1 (typical), delivering smooth visuals and clarity for a variety of work applications, including control rooms and kiosks.
Connectivity Options

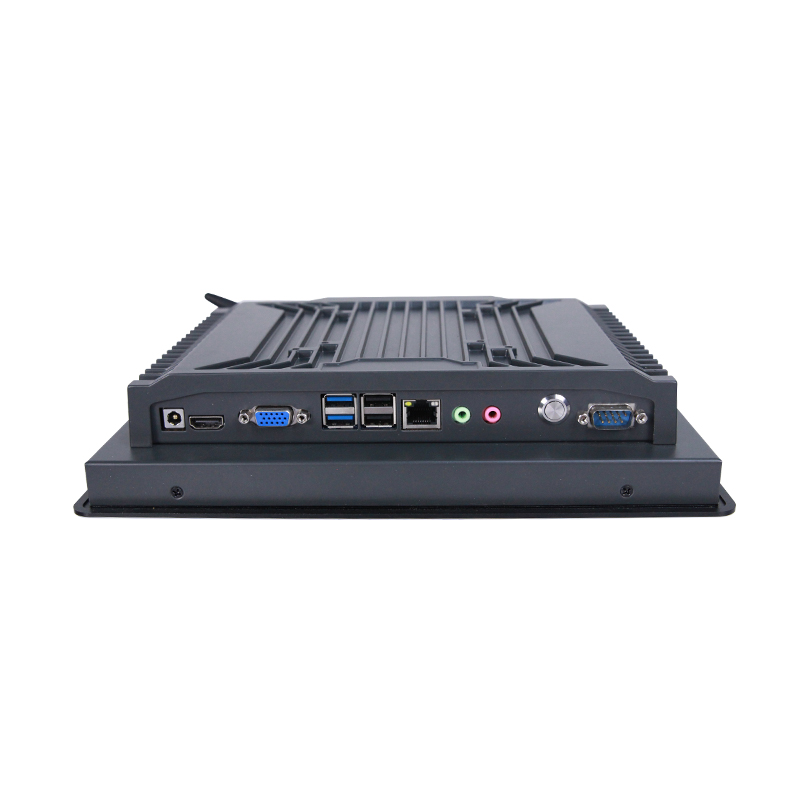

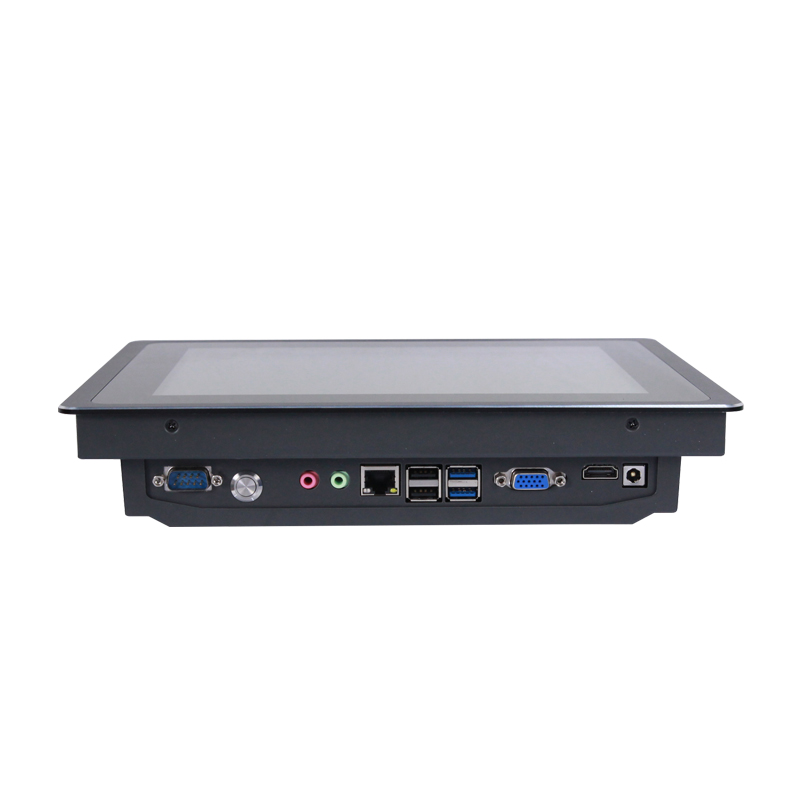

Equipped with HDMI × 1, VGA × 1, USB 2.0 × 2, USB 3.0 × 2, and RS232 ports, supporting seamless integration with various systems. Offers networking via RJ45 Ethernet, 2.4G Wi-Fi, and optional Bluetooth for flexible connectivity.
Performance and Expandability
Powered by an Intel i5 processor with a 2.5GHz frequency, ensuring reliable multitasking and performance. Comes with 2GB DDR2 RAM (expandable up to 8GB) and EMMC storage options ranging from 32GB to 512GB for scalable storage needs.
Optional Features
Includes an optional RFID reader, enhancing functionality for logistics, access control, and inventory management in various professional settings.
Dimensions and Weight
Compact design with dimensions of 317×215×2mm and a lightweight build of just 0.65kg, making it portable and easy to use in field and industrial environments.
Operating Environment
Designed to operate in temperatures ranging from 10°C to 70°C, ensuring reliability and performance in demanding industrial and outdoor conditions.
Voltage and Power
Operates with a DC12V5A power input, providing stable and efficient power for various professional environments, making it an ideal choice for industrial automation, healthcare, and retail sectors.
【Notice】
1. Please contact us if you need other specifications.
2. Payment terms: Samples 100% payment in advance, bulk order 30% deposit, 70% payment before shipment. Sample order accepted.
3. Sample delivery time is 7 working days after payment is received for bulk orders, and shipping time is negotiated.
4. The shipping fees should be covered by buyers, please contact us for details.
5. Warranty: One year.
【Advantages】
Compact and High-Quality Industrial Display
The 10.4-inch industrial display screen delivers WXGA resolution (1024×768) and 250 cd/m² brightness, ensuring crisp and clear visuals in compact form.
Reliable Touch Performance
Features a 10-point capacitive industrial touch display, providing responsive and precise touch capabilities for professional and industrial applications.
Durable Design
Built with an IP54 rating, offering protection against dust and water, making it suitable for challenging environments requiring reliable industrial display performance.
Flexible Connectivity
Equipped with HDMI, VGA, USB 2.0 × 2, USB 3.0 × 2, and RS232 ports, allowing easy integration into custom touch screen display setups and IoT systems.
Scalable Performance
Powered by an Intel i5 processor with a 2.5GHz frequency and options for up to 8GB DDR2 RAM and 512GB EMMC storage, providing flexibility for diverse operational needs.
Optional RFID Functionality
Includes an optional RFID reader, enhancing its versatility for logistics, inventory tracking, and access control in various industries.
Wide Compatibility and Networking
Supports Ethernet, 2.4G Wi-Fi, and optional Bluetooth, enabling seamless integration with industrial automation systems and other devices.
Portable and Lightweight Design
With a compact size of 317×215×2mm and a lightweight build of 0.65kg, the QG104 is easy to transport and install in space-constrained environments.
Operational Stability
Supports a wide operating temperature range (10°C ~ 70°C), ensuring reliable functionality in demanding and dynamic industrial conditions.
Energy Efficient
Operates with a DC12V5A power input, ensuring stable and efficient performance for prolonged usage in professional environments.
【Parameter】
|
Series |
QG |
Screen Size |
10.4 inches |
Resolution |
1024 (RGB) × 768, WXGA |
|
Product Name |
BVS-QG104 |
Product Size |
412*261*56 |
Brightness（cd/m2） |
250 cd/m² (Typ.) |
|
CPU |
Intel i5 |
Main Frequency |
2.5GHZ |
Storage: EMMC |
(Optional: 64G/128G/256G/512G) |
|
DDR2 |
2G (Optional: 4G/8G) |
Operating Systems |
Windows 7, 8, 10/Linux (pre-installed trial version; consult for official licensed versions) |
Contrast Ratio |
250:1 (Typ.) (Transmissive) |
|
USB Ports |
USB 2.0 × 2, USB 3.0 × 2 |
Camera |
None |
Viewing Angle |
20/30/45/45 (Typ.) (CR≥10) |
|
Touch Screen |
10-point capacitive touch |
Reader |
RFID reader (optional) |
IP Rating |
IP54 |
|
Operating Temperature |
10°C ~ 70°C |
Power Adapter |
DC12V5A (DC jack diameter: 2.5mm) |
Sound Output |
Dependent on software options |
|
Basic Software Features |
My Computer, File Explorer, etc. |
Language Support |
Multiple languages (requires advance customization; cannot be changed freely) |
||
|
Networking |
RJ45 Ethernet, supports Ethernet; Wi-Fi module, supports 2.4G-WiFi, Wi-Fi 802.11b/g/n protocol; Bluetooth (optional) |
||||
|
Real-Time Clock |
Built-in real-time clock with battery, supports real-time operation (useful for maritime navigation and logistics) |
||||
|
Interface Devices |
1 RS232 port (standard), supports external peripheral modules (printers, scanners, ID card readers, etc.); HDMI × 1, VGA × 1, Audio × 1 |
||||
【Application】
The QG104 features a 10.4-inch industrial touch display with 1024×768 resolution, 250 cd/m² brightness, and a compact design, making it an ideal solution for professional environments. Its durable construction, IP54 rating, and flexible connectivity options ensure reliable integration into various systems, providing consistent performance across multiple industries.
In hospitality, the QG104 powers self-service kiosks, digital menus, and order management systems in restaurants and hotels, improving customer experience and operational efficiency. For smart conference rooms, its responsive industrial display screen supports presentations, collaboration, and interactive tools, making it a valuable asset in office environments.
In retail, the QG104 enhances point-of-sale systems, interactive kiosks, and digital signage, delivering sharp visuals and seamless functionality. Its compact design also makes it an excellent choice for managing customer engagement terminals in malls and stores.
The device’s versatility extends to logistics, where it supports inventory tracking, package scanning, and real-time management through IoT connectivity and optional RFID integration. Additionally, it excels in digital signage, offering vibrant visuals for promotional displays in high-traffic areas.
With its reliable performance, durable design, and wide range of applications, the QG104 is a trusted tool for modern industries seeking efficiency and adaptability.
